Application of SiddaTEC temperature controllers in laser temperature control

In optical communication, lidar, spectral analysis, and industrial laser equipment, the temperature stability of the laser directly determines the system's performance and reliability. Because laser diodes and laser crystals are extremely sensitive to temperature, precise temperature control using a TEC (Thermoelectric Cooler) system is typically required.

Sidar TEC temperature controllers, through high-precision temperature acquisition and bidirectional current control, can achieve stable temperature regulation of lasers, providing a stable and reliable temperature control solution for optoelectronic equipment.

I. Why Lasers Require Temperature Control

1. The Impact of Laser Temperature on Performance

Lasers generate a significant amount of heat during operation. Excessive temperature fluctuations directly affect laser output characteristics, such as:

• Laser wavelength drift

• Unstable output power

• Changes in threshold current

• Reduced laser lifetime

Studies show that for every 1°C increase in laser diode temperature, the wavelength may drift by approximately 0.3 nm. Therefore, precise temperature control of the laser is necessary.

Furthermore, some laser crystals or optical components only operate stably at specific temperatures, thus requiring a temperature control system to maintain a stable operating environment.

Laser TEC temperature control structure diagram

II. Working Principle of the TEC Temperature Control System

The TEC temperature control system mainly consists of the following components:

• TEC thermoelectric cooler

• Temperature sensor (NTC / PT100)

• TEC temperature controller

• Heat dissipation structure

1. TEC Cooling Principle

The TEC thermoelectric cooler operates based on the Peltier effect.

When direct current passes through a thermocouple made of different semiconductor materials, one end absorbs heat and the other end releases heat, thus achieving cooling or heating.

This technology has no moving mechanical parts, high reliability, and enables rapid temperature regulation.

By changing the direction of the current, TEC can achieve:

• Cooling

• Heating

Thus achieving bidirectional temperature regulation of the laser.

III. Core Advantages of Sidda TEC Temperature Controllers

•1. Sidda TEC temperature controllers employ high-precision temperature acquisition and PID algorithms for bidirectional temperature regulation and rapid cooling/heating.

• Rapid temperature stabilization is achieved through automatic current direction adjustment.

•2. Supports multiple sensor inputs: NTC thermistors/PT100/PT1000, meeting the needs of various optoelectronic devices.

•3. High stability design, low ripple current output, temperature overshoot suppression, soft-start protection, and TEC overcurrent protection ensure long-term stable operation of the laser.

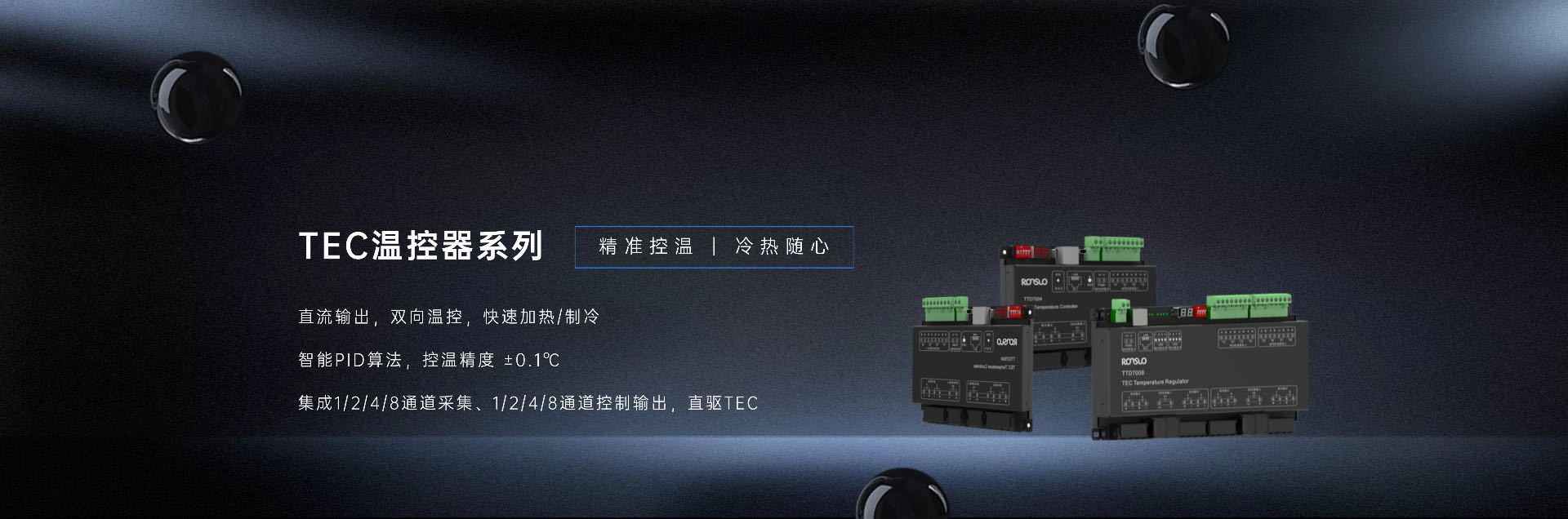

TEC temperature controller model (TTD7004)

Sidda TEC temperature controller model

IV. Typical Application Scenarios

• Sidda TEC temperature controllers are widely used in the following optoelectronic fields:

• 1. Optical communication modules: Stabilize laser wavelength and improve communication stability

• 2. LiDAR: Maintain stable laser power and improve ranging accuracy

• 3. Spectrometers: Stabilize light source wavelength and improve spectral resolution

• 4. Industrial laser equipment: Ensure long-term stable operation of lasers
