PCR instrument TEC temperature control application

Introduction to TEC Temperature Control System Applications in PCR Instruments

I. Background of TEC Temperature Control Applications in PCR Instruments

PCR (Polymerase Chain Reaction) is a revolutionary technology proposed by Kary Mullis in 1983 for the rapid amplification of DNA fragments. It has been widely used in:

* Medical diagnostics (e.g., COVID-19 testing)

* Gene sequencing

* Forensic identification

* Biological research

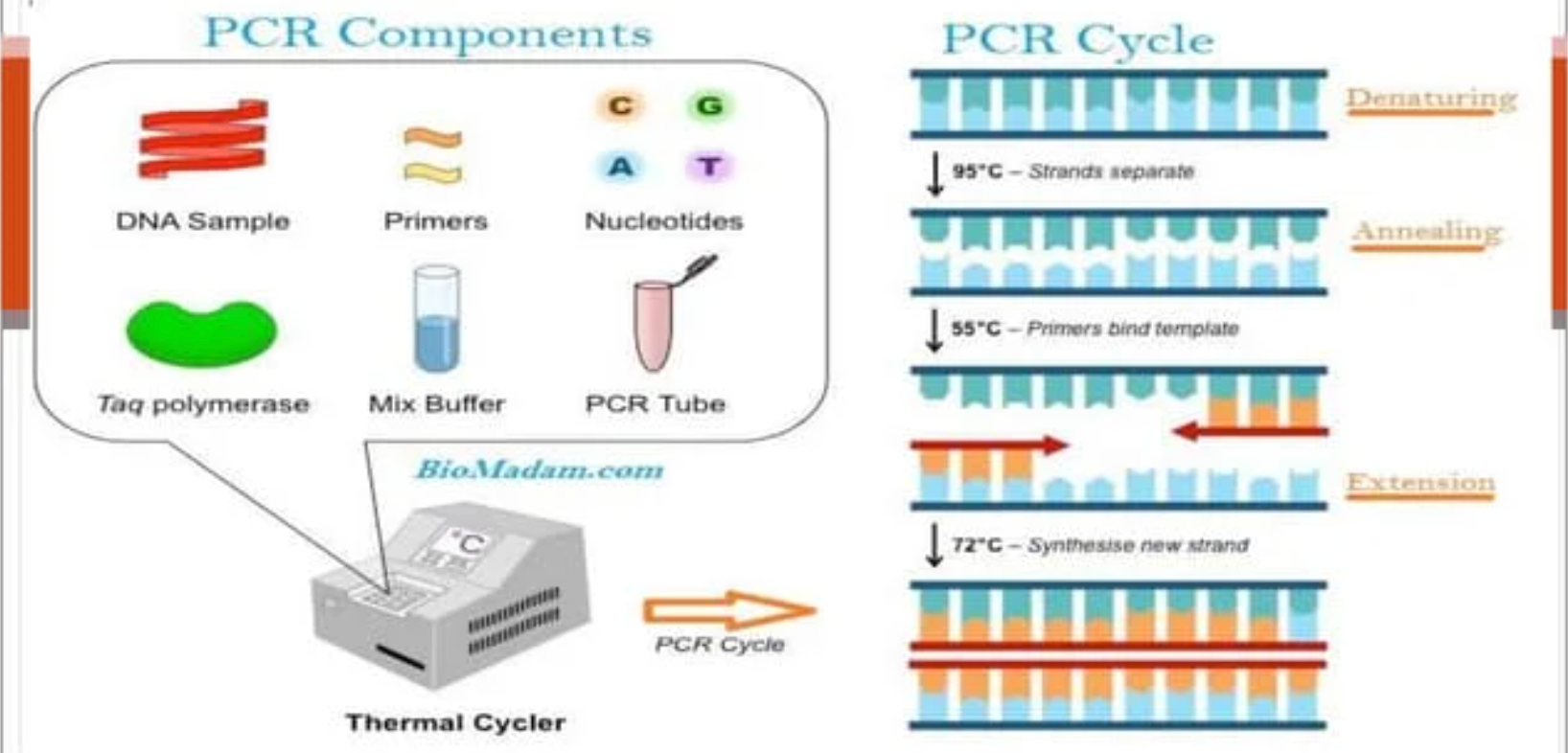

The core of PCR experiments is **temperature cycling control**, which requires repeated switching between different temperature zones. The temperature control system is a key performance determinant of the PCR instrument.

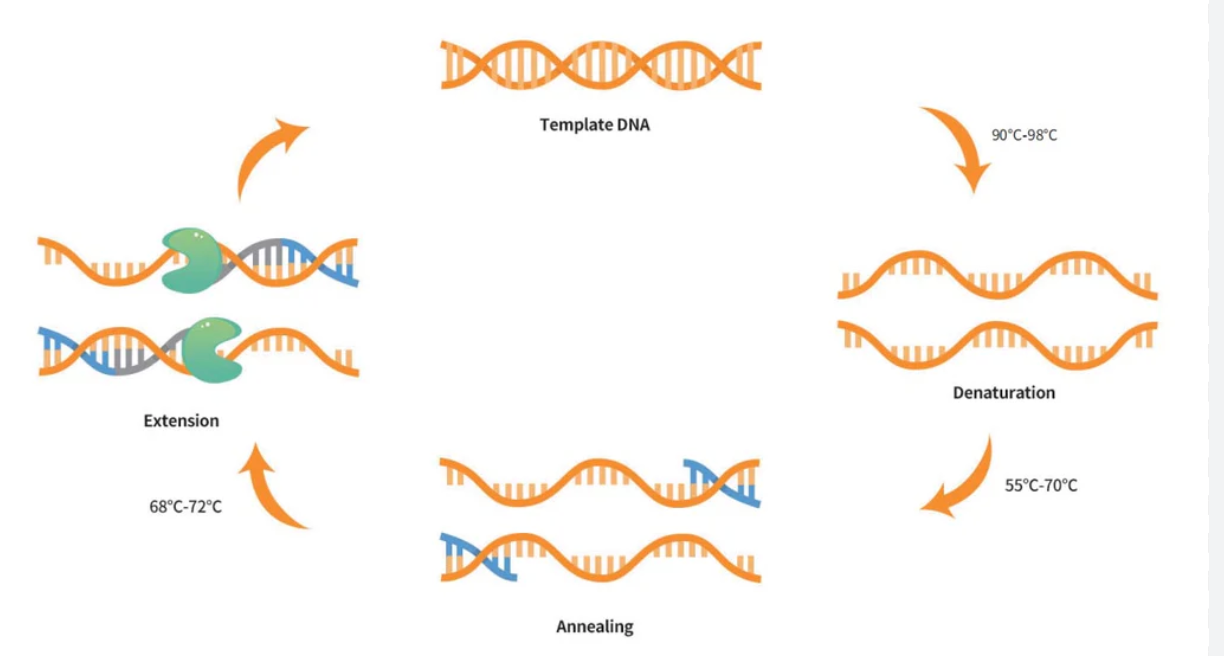

* Denaturation: 94–98℃

* Annealing: 50–65℃

* Elongation: Approximately 72℃

2. Why is TEC Temperature Control Necessary?

Traditional heating methods (resistance heating) have problems: they can only heat, cannot actively cool, have slow temperature response, and lack precision and uniformity. TEC (thermal refrigeration) technology, on the other hand, can: simultaneously achieve heating and cooling, rapidly switch temperatures, and achieve high-precision closed-loop control. It has become the mainstream temperature control solution for PCR instruments.

II. PCR Instrument TEC Temperature Control Technology Principle

1. TEC Core Principle (Peltier Effect) TEC is based on the **Peltier effect**: When energized, one side absorbs heat (cooling), and the other side releases heat (heating). Changing the current direction → reversing the heating/cooling cycle. TEC Structural Features: Ceramic substrate, high reliability with no mechanical movement, noiseless operation, and precise control.

2. PCR Temperature Control System Structure

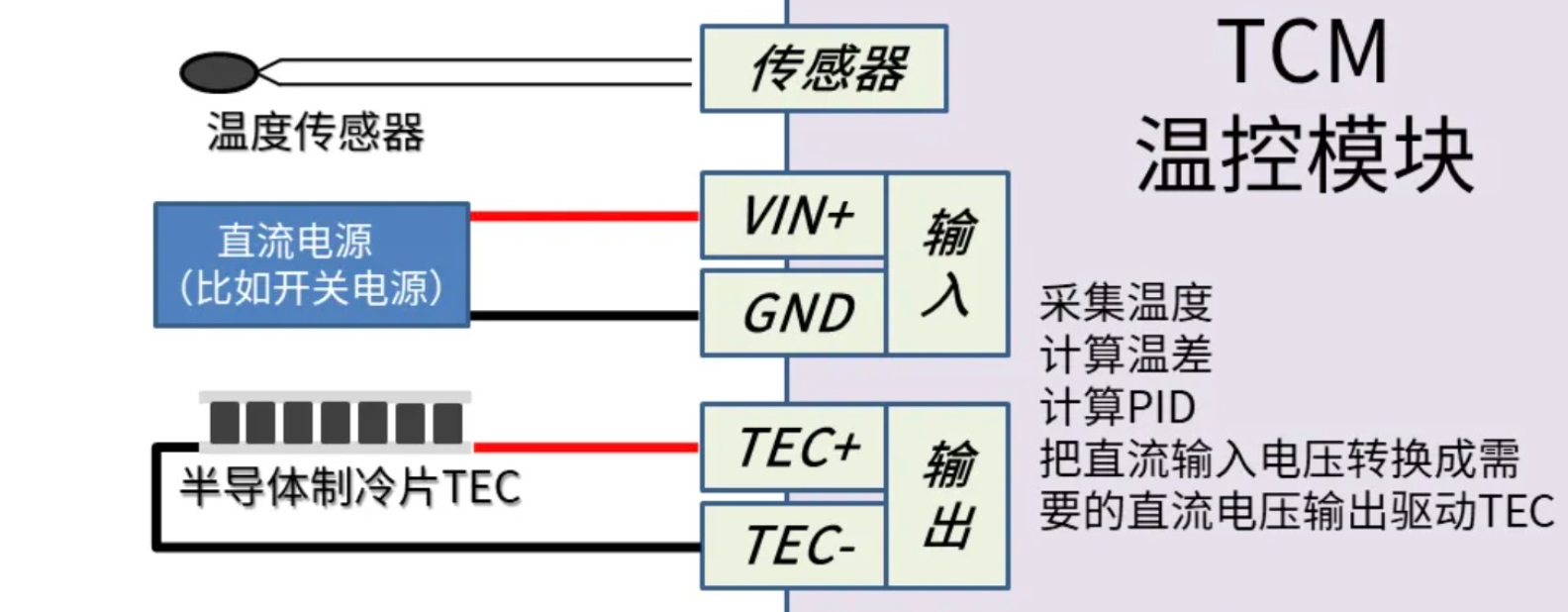

(1) Temperature Control Module

* TEC Cooler

* Aluminum Alloy Heating Module (Sample Block)

(2) Temperature Acquisition

* NTC/PT100 Sensor

* Multi-point Temperature Detection

(3) Control System

* PID Algorithm Control

* PWM/Current Drive

(4) Heat Dissipation System

* Air-cooled/Water-cooled Radiator

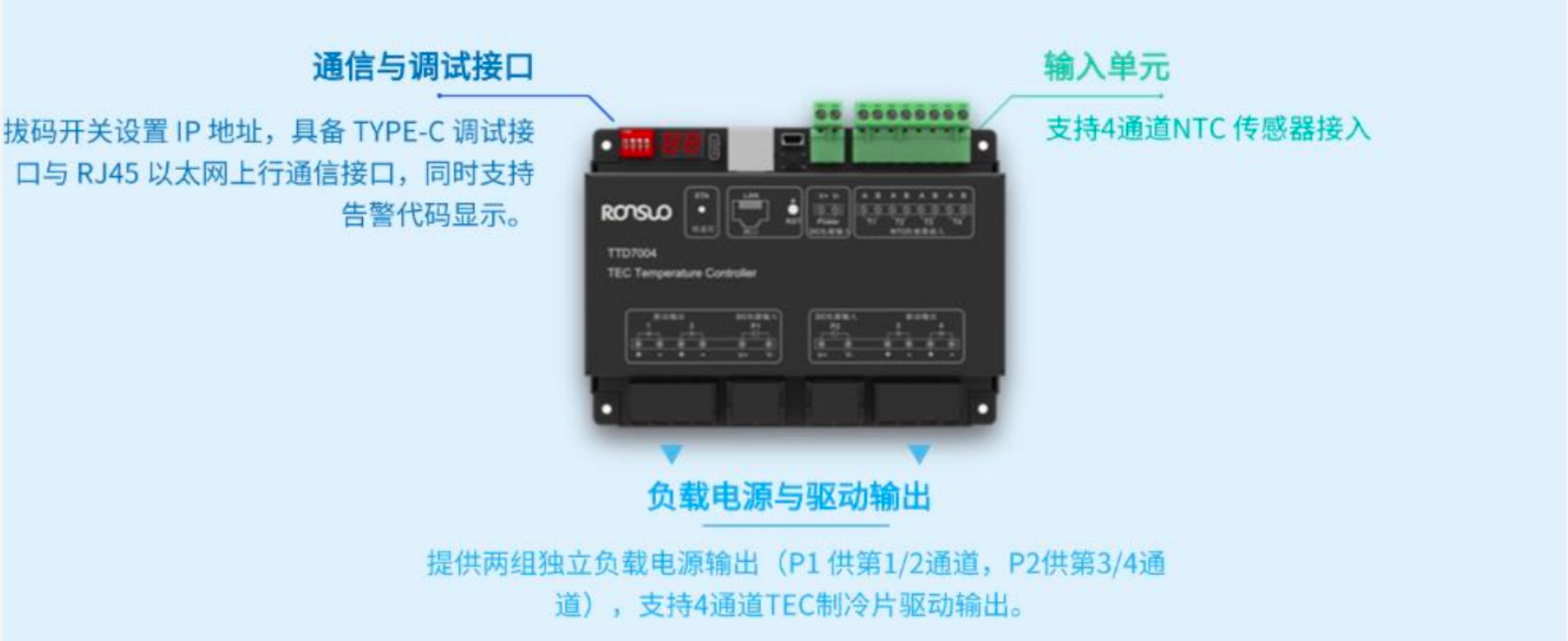

IV. Application of Sidda TEC Temperature Controllers in PCR

1. Sidda TEC Temperature Controller Positioning: Focusing on Semiconductor Temperature Control, High-Precision TEC Control, Medical and Optoelectronic Applications

In the PCR field, it mainly provides:

**TEC Driver + Temperature Control Algorithm Integrated Solution**

2. System Application Architecture

* TEC Driver Module (Bidirectional)

* Temperature Acquisition Module (High-Precision NTC)

* Control Algorithm (PID + Self-Tuning)

* Communication Interface (Modbus/RS485/TCP), which can be directly embedded into the PCR instrument system

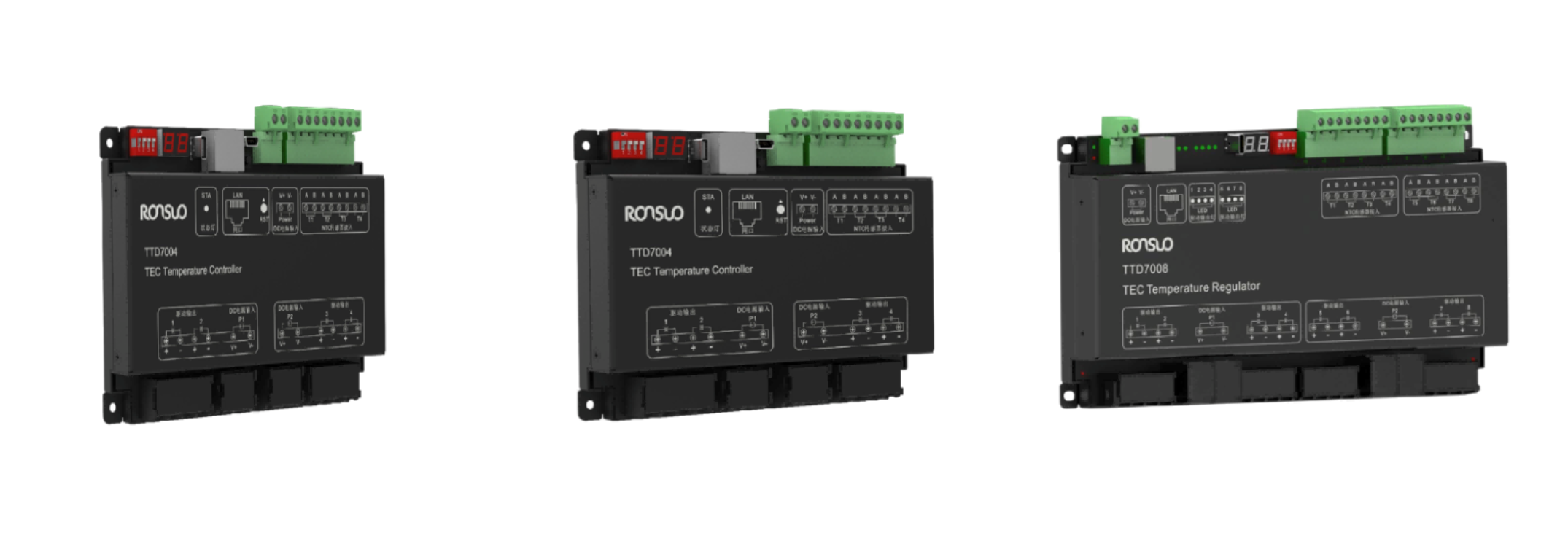

V. Sidda TEC Temperature Controller Product Features

1. High-Precision Control

* 1. Temperature Control Accuracy: ±0.1℃

* Supports multi-point calibration

Meets the stringent consistency requirements of PCR

2. Two-way Temperature Control Capability

* Automatic switching between cooling and heating

* Improved temperature cycling efficiency

3. High Response Speed

* Rapid heating and cooling

* Supports high ramp rate

Enhancing PCR detection efficiency

4. Strong Anti-interference Capability

* Industrial-grade design

* EMC optimized

Suitable for complex medical equipment environments

5. Flexible Integration Capability

* Supports Modbus and analog signals

Easy to embed into PCR systems
