Product Intro

The TCD60xx is a multi-channel intelligent temperature controller supporting 8–48 independent temperature control outputs, suitable for multi-point precise temperature control scenarios. It provides upstream and downstream RS485 interfaces, supporting connection to host computers and temperature acquisition modules. Adopting the standard Modbus RTU protocol, it can network up to 16 devices on a single bus. Each channel features independent PID parameter settings, ensuring high temperature control accuracy, strong stability, and strong anti-interference capabilities. It also incorporates a multi-level over-temperature protection mechanism, automatically cutting off output in case of abnormalities to ensure equipment and material safety.

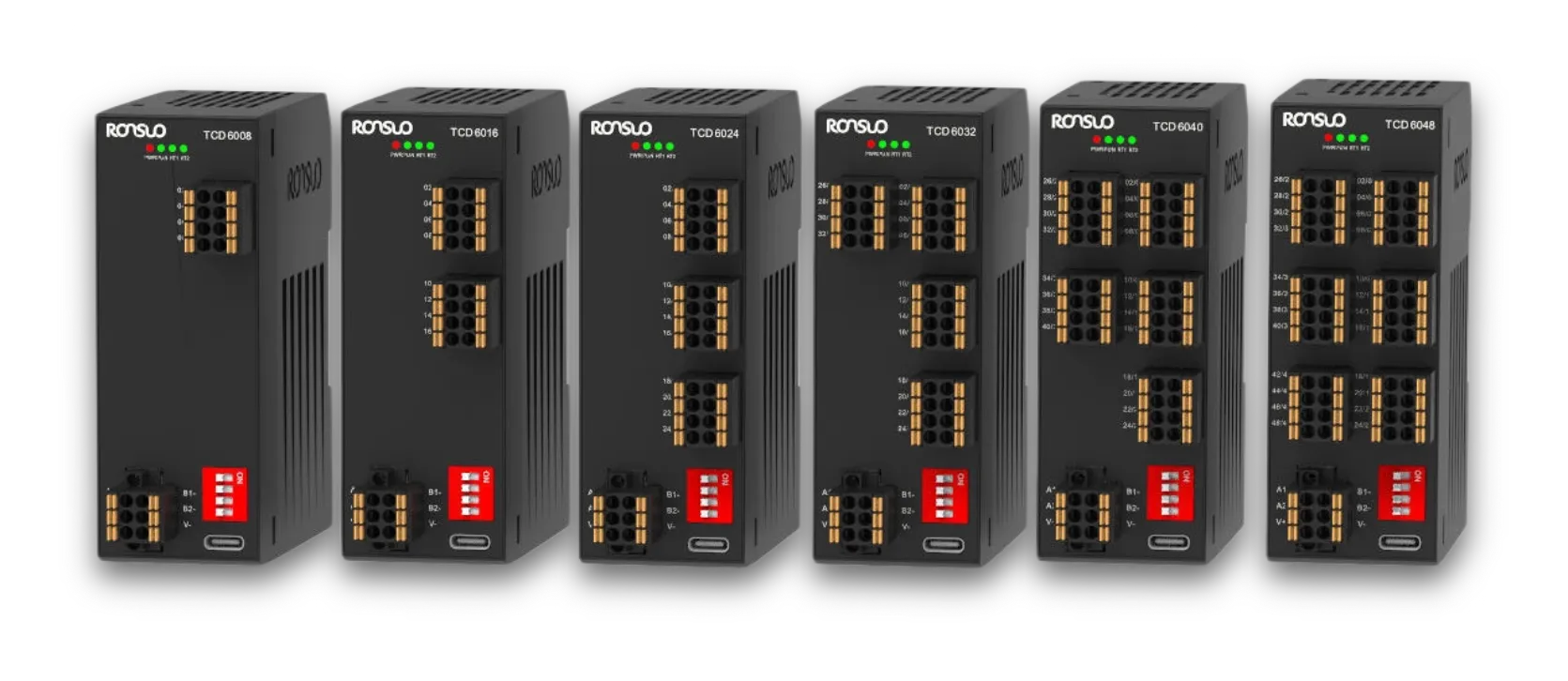

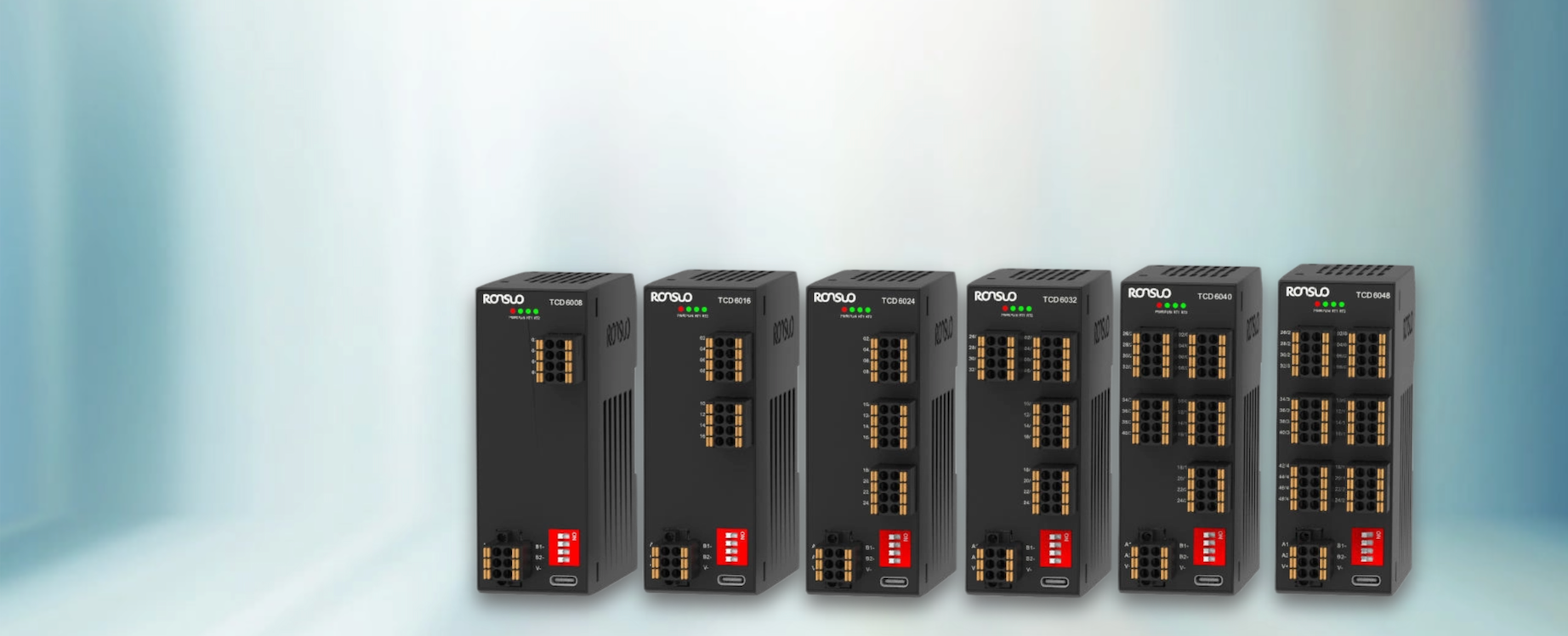

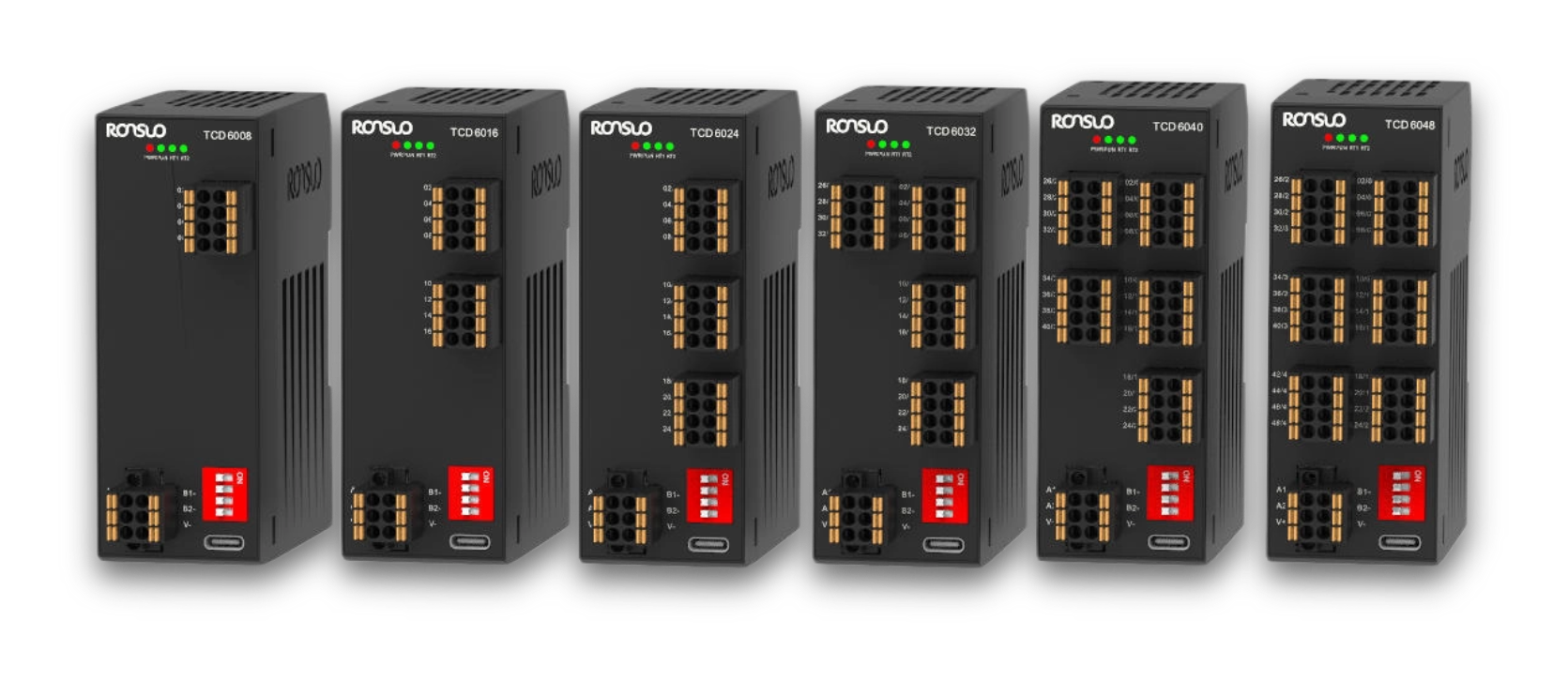

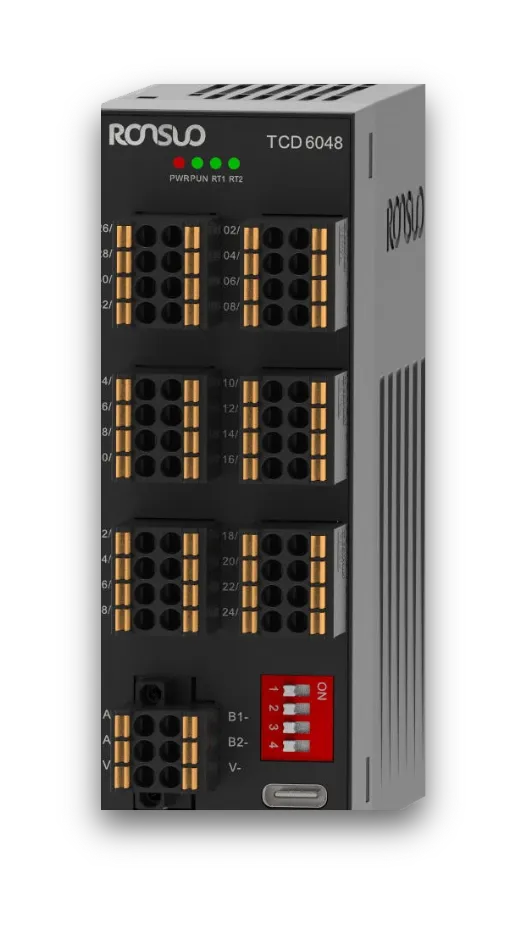

TCD Series Split-Type Temperature Controllers

8-48 Channel Independent PID Control, Precise Temperature Control, Stable and Reliable

The TCD60xx is a multi-channel intelligent temperature controller supporting 8–48 independent temperature control outputs, suitable for multi-point precise temperature control scenarios. It provides upstream and downstream RS485 interfaces, supporting connection to host computers and temperature acquisition modules. Adopting the standard Modbus RTU protocol, it can network up to 16 devices on a single bus. Each channel has independent PID parameter settings, ensuring high temperature control accuracy, strong stability, and strong anti-interference capabilities. It also features a built-in multi-level over-temperature protection mechanism, automatically cutting off the output in case of abnormalities to ensure equipment and material safety.

01 Multi-channel Independent Temperature Control

8–48 channels of independent PID control for more precise temperature control; configurable PNP/NPN modes.

02 Split Architecture Design

Separate deployment of the temperature controller and data acquisition module allows for flexible wiring and is suitable for multi-point distributed temperature control applications.

03 High Stability and Strong Anti-interference

Industrial-grade hardware design adapts to complex electromagnetic environments, ensuring stable and reliable long-term operation.

04 Multi-level Safety Protection Mechanism

Built-in over-temperature and abnormal temperature protection; automatic output cut-off in case of abnormal temperature ensures equipment and material safety.

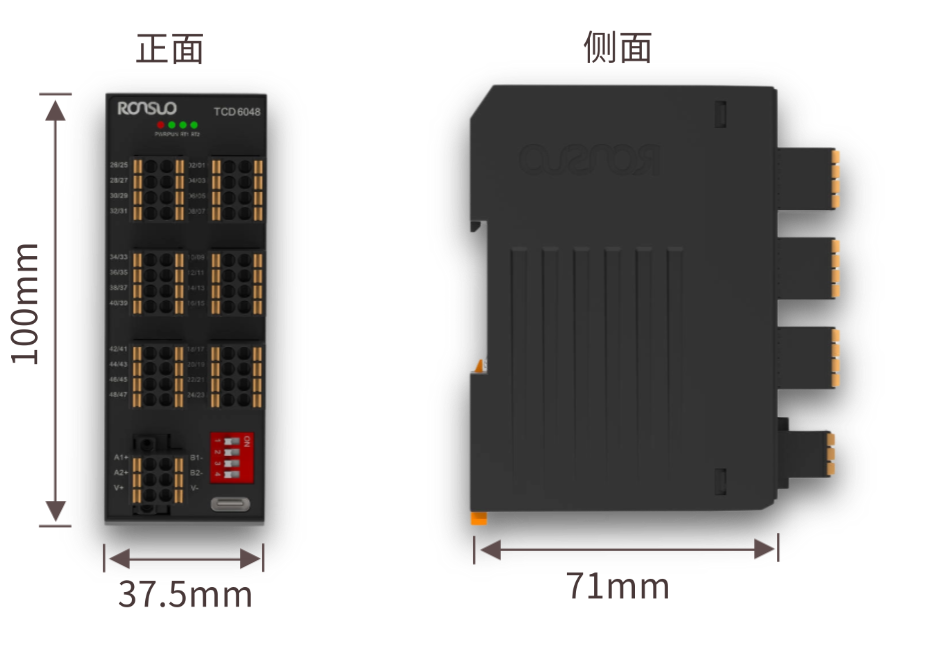

Product Dimensions

Industrial-grade design

Utilizes a high-performance industrial-grade 32-bit processor

Supports long-term stable operation in environments ranging from -20°C to 85°C

Supports a wide voltage input range of 12~36V DC

High-temperature resistant and flame-retardant PC plastic casing

Reliable and Stable

Watchdog design ensures long-term stable system operation

Comprehensive protection mechanisms guarantee equipment stability

Built-in surge and electrostatic discharge protection for power supply and 485 interface

DO output short-circuit protection

Input power interface reverse connection protection

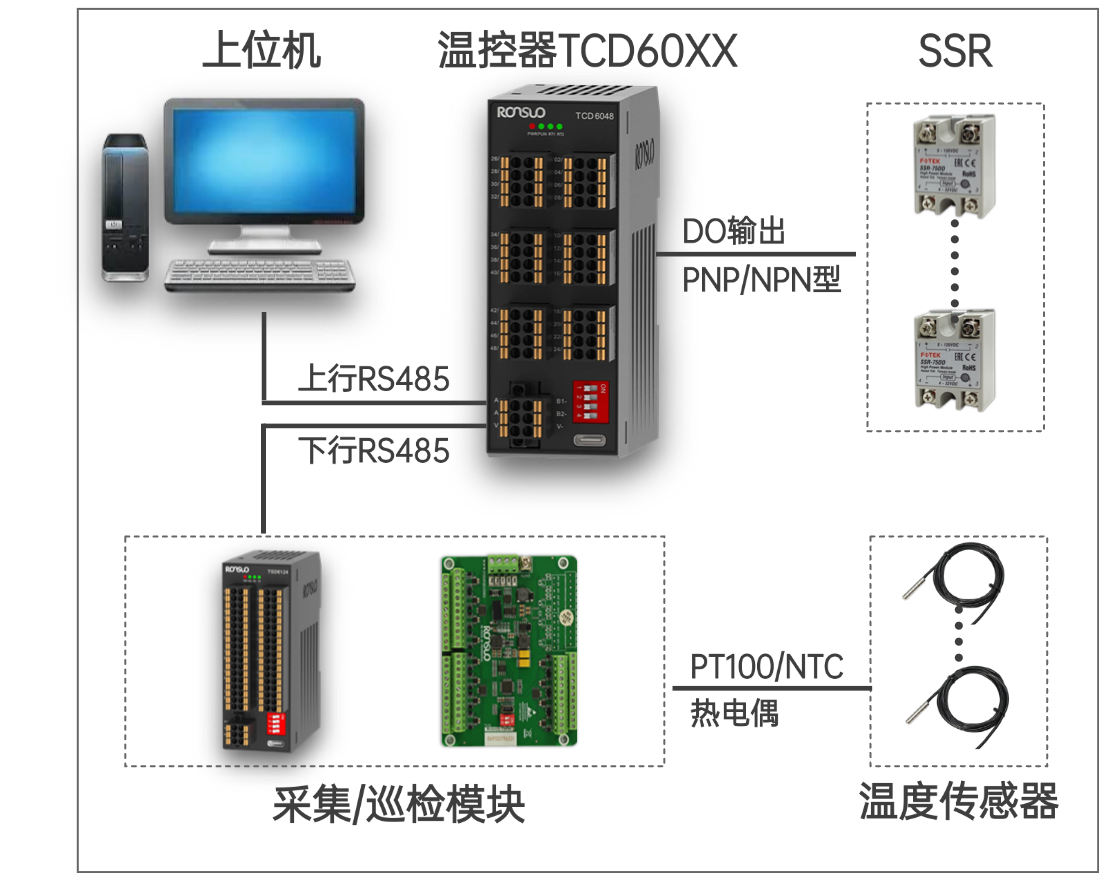

Product Topology Diagram

Product Selection
